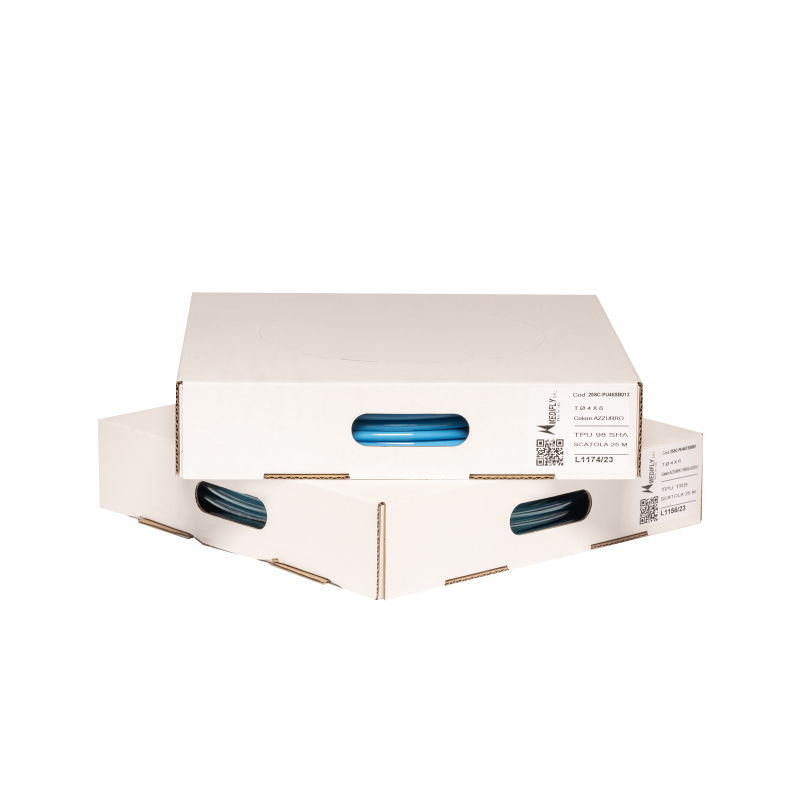

Polyurethane 98 ShA translucid -TRS calibrated tubes in 25 meter boxes

Norms

REACH

ROHS

Application fields

PHYSICAL/MECHANICAL PROPERTIES	TRIAL METHOD	VALUE
Density	DIN 53479 - ISO1183	1,22 g/cm³
Water absorption	a 23°C 50% r.h.	< 1%
Elongation at break	DIN 53504 - ISO37	500%
Tear resistance	DIN 53515 - ISO34	100 N/mm
Flexural elastic modulus	ASTM D790	120 MPa
Abrasion loss	DIN 53516 - ISO4649	30 mm³
Break resistance	DIN 53504 - ISO37	55 MPa

TECHNICAL CHARACTERISTICS:

Very high flexibility at low temperature - Low sensibility to "click" and "stress cracking" effect - Excellent abrasion resistance - Good resistance to atmospheric agents - Good aging - Extremely resistant to fatigue - Excellent transparency

STANDARD MARKING:
| POLYURETHANE TRS Ø4x6 LOT…./.... MADE IN ITALY
Marking is printed every 50 cm. Customized marking on demand.

NOTE: Tolerances according to ISO/TS 11619:2014 polyurethane tubing for use primarily in pneumatic installations.

Product list

Select colour and size and send a request

Code

25SC-PU254T

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

SKYBLUE TRANSLUCID

Select colour On demand (Minimum order quantity to be agreed)

TRANSPARENT

Code

25SC-PU46T

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

SKYBLUE TRANSLUCID

Select colour On demand (Minimum order quantity to be agreed)

TRANSPARENT

Code

25SC-PU558T

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

SKYBLUE TRANSLUCID

Select colour On demand (Minimum order quantity to be agreed)

TRANSPARENT

Code

25SC-PU7510T

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

SKYBLUE TRANSLUCID

Select colour On demand (Minimum order quantity to be agreed)

TRANSPARENT
