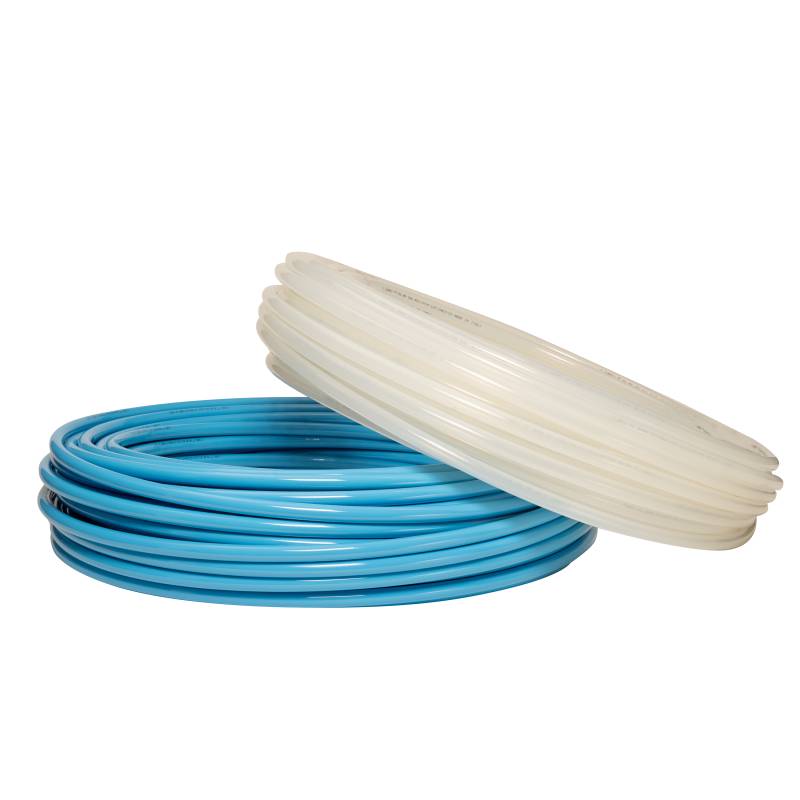

Calibrated tubes in COPEY™ PA MP

Norms

REACH

ROHS

Application fields

PHYSICAL / MECHANICAL PROPERTIES	TRIAL METHOD	VALUE
Hardness	-	65/70 ShD
Water absorption	ISO 62 - a 23°C 50% r.h.	< 1%
Fluxural modulus	ISO 178	450 MPa
Elongation at break	ASTM D638	> 350%
Deflection temperature	-	110°C
Working temperature	-	-30°C / +80°C

TECHNICAL CHARACTERISTICS

Excellent creep and impact resistance - Excellent properties at high temperature - Excellent stability at heat for long periods - Excellent resistance to chemical agents, oils, solvents and atmospheric agents - UV stabilized

STANDARD MARKING:

| COPEY^TM PA MP Ø12.5X15 LOT…./.... MADE IN ITALY

| COPEY^TM PA MP TRS Ø12.5X15 LOT…./.... MADE IN ITALY

Marking is printed every 50 cm. Customized marking on demand

Product list

Select colour and size and send a request

Code

COPEMP12515

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

SKYBLUE

BLACK

TRANSPARENT

GREEN

Select colour On demand (Minimum order quantity to be agreed)

SKYBLUE TRANSLUCID

WHITE

RED

Code

COPEMP1416

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

TRANSPARENT

Select colour On demand (Minimum order quantity to be agreed)
