| PROPRIETA' FISICHE / MECCANICHE | METODO DI PROVA | VALORE |
| Hardness | - | 95 ShA |
| Water absorption | a 23°C 50% r.h. | < 1% |
| Density | ASTM D792 | 1,10 g/cm3 |
| Flexural elastic modulus | ASTM D790 | 150 MPa |
| Working Temperature | - | - 40°C / +80°C |
TECHNICAL CHARACTERISTICS:
High mechanical properties to traction and continuos & alternate flexion - Good flexibility - Good stability to heat - Remarkable resistance to aging - Low water absorption - Excellent resistence to abrasion
APPLICATIONS:
This kind of material is particularly indicated to realize pneumatic tubes, robotic, industrial machines, air passage in general, automotive (pneumatic circuits for airbrake systems), welding, electric/electronic sector, glass industry, etc.
MARKING:
| 5X8 COEX PU/PA V0/UL94 LOT .../... MADE IN ITALY
The marking is printed every 50 cm.
NORMS: The raw material used to produce these tubes is according to: UL94

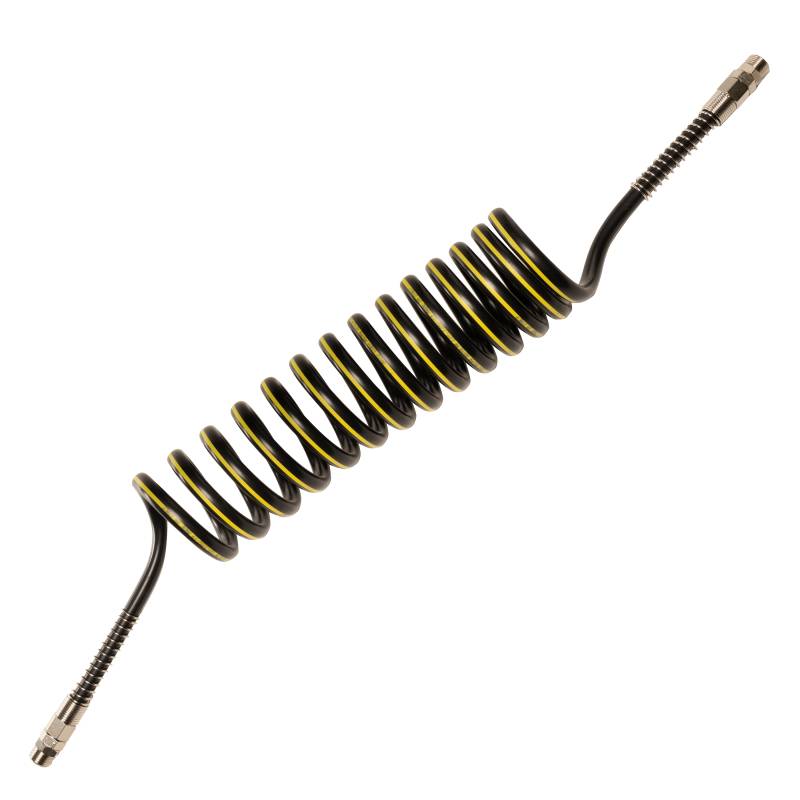

FITTINGS: Spiral tubes 4x6, 5x8 and 6,5x10 have fittings 1/4" male rotating with springs. Spiral tubes 8x12 have fittings 3/8" male rotating with springs.
