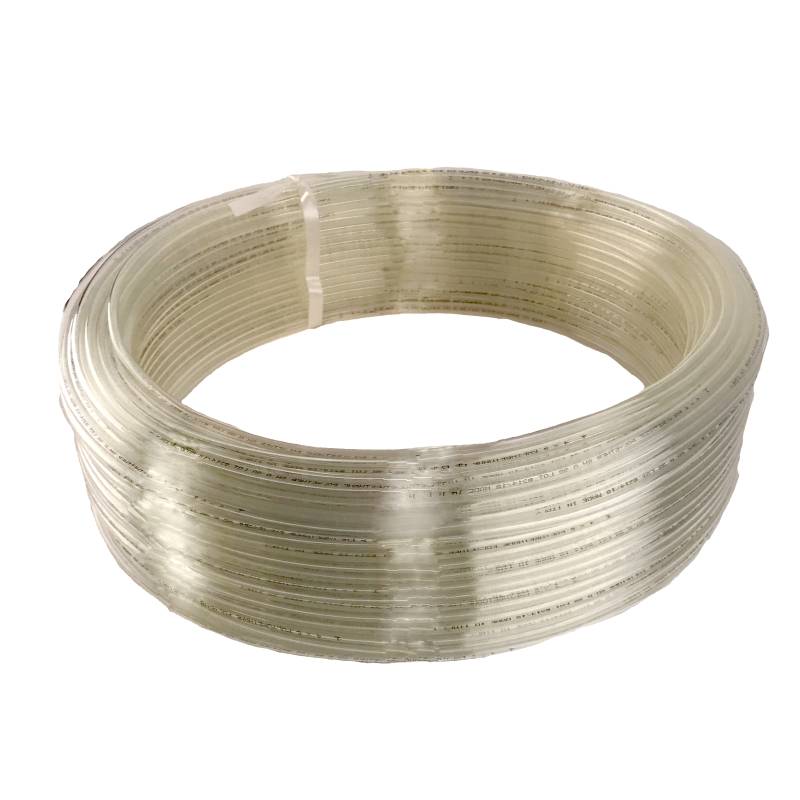

Polyurethane 98 ShA calibrated tubes

Norms

REACH

ROHS

CALIFORNIA PROPOSITION 65

Reg. (EC) 2023/2006

Reg. (EC) 10/2011

Framework Regulation (EC) 1935/2004

FDA Title 21 § 177.2600

FDA Title 21 § 177.1680

Application fields

PHYSICAL / MECHANICAL PROPERTIES	TRIAL METHOD	VALUE
Hardness	DIN 53505- ISO 868	98 ShA / 52 ShD
Water absorption	ISO 62 - a 23 °C 50% r.h.	< 1%
Density	DIN 53479 - ISO 1183	1,22 g/cm³
Allungamento alla rottura	DIN 53504 - ISO 37	500%
Resistenza allo strappo	DIN 53515 - ISO 34	100 N/mm
Modulo elastico a flessione	DIN 53504 - ISO 37	100 MPa
Perdita di abrasione	DIN 53516 - ISO 4649	30 mm³
Resistenza alla rottura	DIN 53504 - ISO 37	55 MPa
Temperatura di applicazione	-	- 40°C / +60°C

TECHNICAL CHARACTERISTICS

Excellent resistance to abrasion - Good resistance to atmospheric agents (humidity) - Extremely resistance to fatigue and to hydrolysis - Good aging - Low sensible to “click” and “stress cracking” effect - Very high flexibility to low temperature - Excellent transparency

APPLICATIONS: The tubes realized with this material are particularly recommended to connect automatic system for distribution or transport of water, for the dental application, in robotics, for industrial machines, etc.

NOTE: Tolerances according to ISO/TS 11619:2014 polyurethane tubing for use primarily in pneumatic installations.

STANDARD MARKING

I 6X8 POLYURETHANE POLYETHER SH.A 98 LOT../. MADE IN ITALY

The marking is printed every 50cm. Customized marking on demand.

NORMS:

The raw material used to produce these tubes is according to:

Reg. (EC) 1935/2004
Reg. 2023/2006/EC
Reg. (UE) n. 10/2011
FDA CFR 21 § 177.1680, § 177.2600

Eventual alimentary declarations of conformity about the raw material can be requested at the moment of the order.

Product list

Select colour and size and send a request

Code

PU254T POL

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

TRANSPARENT

Select colour On demand (Minimum order quantity to be agreed)

Code

PU46T POL

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

TRANSPARENT

Select colour On demand (Minimum order quantity to be agreed)

Code

PU68T POL

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

TRANSPARENT

Select colour On demand (Minimum order quantity to be agreed)

Code

PU810T POL

Dim. Ø Int. (mm): 0
Dim. Ø Est. (mm): 0
Working pressure (Bar): 0
Bursting pressure (Bar): 0
Bending ray (mm): 0
Dim. Ø Int. coil (mm): 0
Dim. Ø Tube (mm): 0
Dim. Ø Band (mm): 0
Bending ray Bar: 0
Thickness (mm): 0
Lenght (m): 0
Extended Lenght (m): 0
Fittings: 0
Surface: 0
Tangs (mm): 0
Hardness Sha: 0
Pieces / box: 0
Meters / box : 0
UL94: 0
Meters / weight: 0

Select colour STANDARD

TRANSPARENT

Select colour On demand (Minimum order quantity to be agreed)
